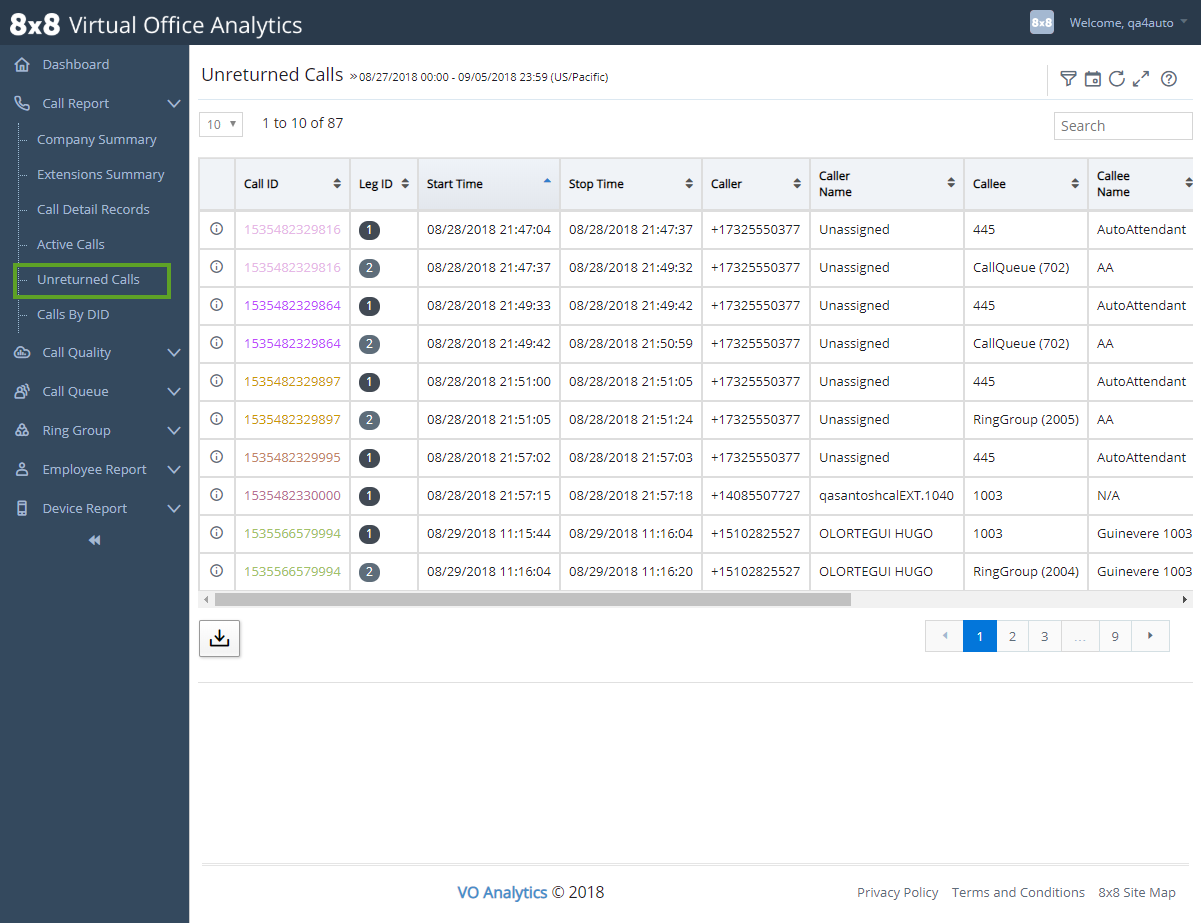

Unreturned Calls

Unreturned calls are missed calls that are not returned from any extension within the PBXPrivate Branch Exchange—a private telephone network used within a company.. This includes redirected calls that are unreturned by the final destination party. With this report, you can make sure that calls to important customers are returned in a timely fashion.

• Ability to select metrics: Yes
• Ability to customize filter: Yes
• Ability to export: Yes

Glossary: Unreturned Calls

Unreturned calls are missed incoming calls that are not returned from any extension within the PBX. This includes all redirected calls that are unreturned by the final destination party.

Column	Description
Call ID	A unique call identification number that identifies all legs of the original call.
Leg ID	Identifies the leg of a call using a hop number, such as 1 for direct, or 2 for a forwarded or transferred call which this record refers to.
Start Time	The time an incoming call arrived on the PBX.
Stop Time	The time the external caller disconnects the call.
Caller	The phone number of the original (external party) caller. A redirecting party is recorded in the LRALast Redirect Number is the number of the last party that redirected the call. field.
Callee	The phone number of the original called party. If there is a redirection, two call legs are shown. The redirecting party shows in the first leg's callee and in the second leg's LRA field.
Cause	Reason for a call: Normal, Redirected, Ring No Answer, and so on.
Status	Indicates status of a call as In Progress (dialing or talking) or completed (ended).
Parent Call ID	Parent call identification number of a complex (transferred, forwarded, or conference) call. Searching by Parent Call ID collects the call details of all legs of a complex call.
Transfer To Call ID	Call Identification number to which a call is transferred to.
Caller Name	The name of the original (external party) caller.
Callee Name	The name of the original callee.
Caller Device ID	The device identifier unique to the device of the caller.
Callee Device ID	The device identifier unique to the device of the callee.
Caller Device Model	Device model used by the caller in this leg of the call.
Callee Device Model	Device model used by the callee in this leg of the call.
Caller ID	Transmitted caller number and/or name.
Missed	Indicates the call is missed (includes calls that reached voicemail and or abandoned).
Abandoned	Indicates the call is abandoned by the caller before it is answered or handled in this leg of the call (for this CDRCall Detail Record includes call details such as point of origin,end point, call direction, call duration, and more.).
Answered	N/A for unreturned calls.
Caller Service Name	Service Names include Auto Attendant, Ring Group Service, ACD Operator Service, Master Slave Service, One Number Access, and Click To Dial.
Caller Service Type	Service Types include Custom, Virtual Extension, Voicemail, Auto Attendant, and Call Park Extension.
Callee Service Name	Service Names include Auto Attendant, Ring Group Service, ACD Operator Service, Master Slave Service, One Number Access, and Click To Dial.
Callee Service Type	Service Types include Custom, Virtual Extension, Voicemail, Auto Attendant, and Call Park Extension.
Last Redirect Number	The number of the last party that redirected the call.
Last Redirect Type	Indicates whether the call is a normal extension call, directed to a queue, ring group, or etc. Possible values are 1 (Normal Extension), 3 (Ring Group), 4 (Queue), 5 (Virtual Extension), 6 (Media Service, such as Voicemail, Auto Attendant, or Master-slave), and 7 (Call Park Extension).
Call Time	Total duration of this leg of the call.
Caller Hold Duration	N/A for unreturned calls.
Callee Hold Duration	N/A for unreturned calls.
Caller Disconnect On Hold	N/A for unreturned calls.
Callee Disconnect On Hold	N/A for unreturned calls.
PBX ID	Caller's phone system ID.
SIPSession Initiation Protocol—a telecommunication protocol for signaling and controlling multimedia communication sessions. Call ID	SIP Call ID for this call.
